Security is a key part of web design today. Many apps use biometrics like fingerprint or face recognition for real authentication. But in this tutorial, we will not create a real biometric system. Instead, we will design a dummy fingerprint scanner – a futuristic UI simulation of a vault login system using only HTML, CSS, and JavaScript.

Note: This fingerprint scanner is only a dummy for design purposes. It does not provide real biometric security.

By the end of this guide, you’ll have a sci-fi-inspired login portal that looks like a vault access screen with a glowing fingerprint effect and access granted animation.

Prerequisites

Before you start, make sure you have:

  • Basic knowledge of HTML, CSS, and JavaScript
  • A code editor (VS Code, Sublime Text, Atom, or Notepad++)
  • A browser (Chrome, Edge, or Firefox) to test the project
  • Basic idea of CSS animations and styling

Source Code

Step 1 (HTML Code):

To get started, we first need to create a basic HTML file. In this file, we will include the main structure for our vault login. Let's break down the HTML code:

1. Document Setup

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
  • <!DOCTYPE html> → Defines HTML5 document.
  • lang="en" → Page language is English.
  • meta charset="UTF-8" → Supports all characters (English + special).
  • X-UA-Compatible → Ensures compatibility with old Internet Explorer.
  • viewport → Makes site mobile responsive.

2. External Fonts & Icons

<link rel="preconnect" href="https://fonts.googleapis.com">
<link rel="preconnect" href="https://fonts.gstatic.com" crossorigin>
<link href="https://fonts.googleapis.com/css2?family=Inter:wght@300;400;500;600;700&display=swap" rel="stylesheet">
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.4.0/css/all.min.css">
  • Loads Google Fonts (Inter).
  • Loads Font Awesome icons (lock, user-shield, cog, etc.).

3. Page Title & CSS

<title>Futuristic Vault Login - Fingerprint Scan & Access Portal</title>
<link rel="stylesheet" href="styles.css">
  • title → Shown on browser tab & SEO.
  • styles.css → External stylesheet for design.

4. Preloader (Vault + Fingerprint UI)

<div class="preloader">
  <div class="preloader-content">

A preloader screen that shows vault + fingerprint scanner before content loads.

a) Vault Door Assembly

<div class="vault-perspective-container">
  <div class="vault-door-assembly">
      <div class="vault-frame">
          <div class="vault-interior"></div>
          <div class="bolt-receptacle top"></div>
          <div class="bolt-receptacle right"></div>
          <div class="bolt-receptacle bottom"></div>
          <div class="bolt-receptacle left"></div>
      </div>
      <div class="vault-door">
          <div class="hinge top"></div>
          <div class="hinge bottom"></div>
  • Creates a 3D vault door effect with bolts, hinges, and frame.
  • Will later animate open when access is granted.

b) Vault Dial / Handle

<div class="vault-dial-container">
  <div class="vault-dial">
      <div class="vault-handle">
          <div class="handle-spoke"></div>
          <div class="handle-spoke"></div>
          <div class="handle-spoke"></div>
          <div class="handle-hub"></div>
      </div>
  </div>
</div>
  • Creates a vault handle/dial (like a bank safe).

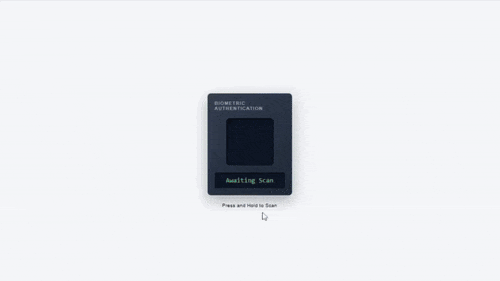

5. Security Panel (Fingerprint Scanner)

<div class="security-panel">
    <div class="panel-header">
        <span>BIOMETRIC AUTHENTICATION</span>
    </div>
  • Side panel with Biometric Authentication title.

a) Fingerprint Scanner SVG

<div class="fingerprint-scanner">
    <svg class="fingerprint-svg" viewBox="0 0 24 24">
        <g class="fingerprint-lines">
            <path d="M17.81 4.47c..."/>
        </g>
        <g class="success-mark">
            <path d="M6 12 l4 4 l8 -8" />
        </g>
    </svg>
    <div class="scan-line"></div>
</div>
  • A fingerprint icon (SVG paths).
  • <g class="success-mark"> → Checkmark appears when scan succeeds.
  • .scan-line → Animated scanning line effect.

b) Status Text

<div class="status-display">
    <span class="status-text">Awaiting Scan</span>
</div>
  • Shows text like Awaiting Scan → Scanning → Access Granted.

6. Vault Instructions

<div class="vault-instructions">
  <p>Press and Hold to Scan</p>
</div>
  • Instructions for the user.

7. Main Website Content

<div class="main-content">
  <div class="content-container">
  • This is the real content that shows after access is granted.

a) Welcome Animation

<div class="welcome-animation">
  <i class="fas fa-lock-open success-icon"></i>
  <h1>ACCESS GRANTED</h1>
  <p>Secure vault system disengaged</p>
</div>
  • Lock icon + “ACCESS GRANTED” animation when fingerprint scan passes.

b) Content Card with Features

<div class="content-card">
  <h2>Premium Secure Portal</h2>
  <p>Your sensitive content is now accessible...</p>
  <div class="features-grid">
      <div class="feature">
          <i class="fas fa-user-shield"></i>
          <h3>Security</h3>
          <p>Manage your protection settings</p>
      </div>
      ...
  </div>
</div>
  • Features Grid → 4 features (Security, Documents, Settings, Logout).

8. External JS Libraries

<script src="https://cdnjs.cloudflare.com/ajax/libs/tone/14.7.77/Tone.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/3.11.5/gsap.min.js"></script>
  • Tone.js → Sound effects (e.g., scan beep, vault unlock).
  • GSAP → Animations (vault door opening, scan line movement, etc.).

9. Custom JavaScript

<script src="script.js"></script>
  • Controls the fingerprint scan, animations, and access granted logic.
Read Alsocreate a stunning spotify clone project with html and css.jpgCreate a Stunning Spotify Clone Project with HTML and CSS (Source Code)

Step 2 (CSS Code):

Once the basic HTML structure of the vault login is in place, the next step is to add styling to the page using CSS. Let's break down the CSS code:

1. Global Reset

* {
  margin: 0;
  padding: 0;
  box-sizing: border-box;
}
  • Removes default browser margins and paddings.
  • Uses box-sizing: border-box so padding & border are included in element width/height.

2. Body Styling

body {
  font-family: 'Inter', sans-serif;
  overflow-x: hidden;
  background-color: #f8fafc;
  color: #334155;
}
  • Sets font to Inter (fallback sans-serif).
  • Prevents horizontal scrolling (overflow-x: hidden).
  • Light gray background with dark gray text.

3. Preloader Screen

.preloader { ... }
.preloader-content { ... }
  • Full-screen loading screen before vault unlock.
  • Centered flexbox layout with smooth transitions.
  • z-index: 9999 ensures it stays on top.

4. Security Panel

.security-panel { ... }
.panel-header { ... }
.scanner-area { ... }
.status-display { ... }
  • Small card showing the fingerprint scanner + status.
  • Dark gradient with shadow for 3D effect.
  • .status-display shows “Success” or “Failed” messages.
  • .scanning.fail ~ .status-display → turns text red on failed scan.

5. Fingerprint Scanner

.fingerprint-scanner { ... }
.fingerprint-lines { ... }
.scan-line { ... }
.success-mark { ... }
  • Scanner is interactive (cursor: pointer).
  • Uses SVG for fingerprint lines.
  • .scan-line → blue glowing horizontal line that animates scanning.
  • .success-mark → green checkmark after successful scan.
  • .scanning.fail → fingerprint turns red & shakes (error).

6. Vault 3D Door

.vault-perspective-container { ... }
.vault-door-assembly { ... }
.vault-frame { ... }
.vault-interior { ... }
  • 3D vault door effect using perspective & transform-style: preserve-3d.
  • Circular metallic frame + interior gradient.
  • Bolt receptacles around edges (top, right, bottom, left).
  • .vault-door → rotates open when unlocked (.is-unlocked).
  • Uses pseudo-elements (::before, ::after) for the front/back face of the door.

7. Vault Hinges & Dial

.hinge { ... }
.vault-dial-container { ... }
.vault-dial { ... }
.vault-handle { ... }
.handle-spoke { ... }
.handle-hub { ... }
  • Hinges on the left side to make the door realistic.
  • Center dial with rotating handle (3 spokes + hub) like a safe.
  • .vault-handle.active → glowing pulse animation.

8. Main Content (After Unlock)

.main-content { ... }
.content-container { ... }
.welcome-animation { ... }
.content-card { ... }
.features-grid { ... }
  • Hidden initially (opacity: 0; transform: scale(0.95)).
  • Fades in (.visible) after unlocking.
  • Cards and features grid with hover effects.
  • Clean, modern design with subtle shadows and rounded corners.

9.Animations

@keyframes pulse-handle { ... }
@keyframes shake { ... }
  • pulse-handle → glowing golden handle effect.
  • shake → fingerprint shakes left-right when scan fails.
* {
  margin: 0;
  padding: 0;
  box-sizing: border-box;
}

body {
  font-family: 'Inter', sans-serif;
  overflow-x: hidden;
  background-color: #f8fafc;
  color: #334155;
}

.preloader {
  position: fixed;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  background-color: #f8fafc;
  display: flex;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  gap: 15px;
  z-index: 9999;
  transition: background-color 1s ease-out, opacity 0.5s ease-in-out;
  overflow: hidden;
}

.preloader-content {
  width: 100%;
  max-width: 600px;
  display: flex;
  align-items: center;
  justify-content: center;
  transition: transform 1.5s ease-in, opacity 1s ease-in,
    justify-content 0.8s ease-in-out;
}

/* Security Panel */
.security-panel {
  width: 200px;
  background: linear-gradient(145deg, #374151, #1f2937);
  border-radius: 8px;
  border: 1px solid #cbd5e1;
  box-shadow: 0 10px 30px rgba(0, 0, 0, 0.3);
  padding: 15px;
  display: flex;
  flex-direction: column;
  align-items: center;
  gap: 15px;
}

.panel-header {
  font-size: 9px;
  font-weight: 600;
  color: #9ca3af;
  letter-spacing: 1px;
}

.scanner-area {
  width: 100px;
  height: 100px;
  background: #111827;
  border-radius: 8px;
  padding: 10px;
  box-shadow: inset 0 2px 10px rgba(0, 0, 0, 0.5);
}

.status-display {
  width: 100%;
  background: #111827;
  color: #34d399;
  font-size: 14px;
  text-align: center;
  padding: 8px;
  border-radius: 4px;
  box-shadow: inset 0 1px 4px rgba(0, 0, 0, 0.5);
  transition: color 0.3s;
}

.scanning.fail ~ .status-display {
  color: #ef4444;
}

.vault-instructions {
  font-size: 10px;
  font-weight: 500;
  color: #111827;
  letter-spacing: 0.5px;
}

/* Fingerprint Scanner */
.fingerprint-scanner {
  width: 100%;
  height: 100%;
  cursor: pointer;
  position: relative;
  border-radius: 4px;
  overflow: hidden;
}

.fingerprint-svg {
  width: 100%;
  height: 100%;
}

.fingerprint-lines {
  fill: #2563eb;
  clip-path: polygon(0% 0%, 100% 0%, 100% 0%, 0% 0%);
}

.scan-line {
  position: absolute;
  top: 0;
  left: -10%;
  width: 120%;
  height: 2px;
  background: #2563eb;
  box-shadow: 0 0 10px #2563eb;
  opacity: 0;
}

.success-mark {
  fill: none;
  stroke: #10b981;
  stroke-width: 2;
  stroke-linecap: round;
  stroke-linejoin: round;
  opacity: 0;
}

.scanning.fail .fingerprint-lines {
  fill: #ef4444;
  animation: shake 0.5s;
}

/* Vault Styles */
.vault-perspective-container {
  perspective: 1000px;
  display: none;
}

.vault-door-assembly {
  position: relative;
  width: 220px;
  height: 220px;
  transform-style: preserve-3d;
}

.vault-frame {
  width: 100%;
  height: 100%;
  background: #374151;
  border-radius: 50%;
  border: 1px solid #4b5563;
  box-shadow: 0 10px 30px rgba(0, 0, 0, 0.3), inset 0 0 10px rgba(0, 0, 0, 0.4);
  position: absolute;
}

.vault-interior {
  position: absolute;
  top: 10px;
  left: 10px;
  right: 10px;
  bottom: 10px;
  background: radial-gradient(circle, #222 0%, #000 100%);
  border-radius: 50%;
  box-shadow: inset 0 0 20px rgba(0, 0, 0, 0.8);
}

.bolt-receptacle {
  position: absolute;
  background: #cbd5e1;
  box-shadow: inset 0 2px 5px rgba(0, 0, 0, 0.2);
}

.bolt-receptacle.top {
  top: 5px;
  left: 50%;
  transform: translateX(-50%);
  width: 30px;
  height: 10px;
  border-radius: 5px;
}

.bolt-receptacle.right {
  right: 5px;
  top: 50%;
  transform: translateY(-50%);
  width: 10px;
  height: 30px;
  border-radius: 5px;
}

.bolt-receptacle.bottom {
  bottom: 5px;
  left: 50%;
  transform: translateX(-50%);
  width: 30px;
  height: 10px;
  border-radius: 5px;
}

.bolt-receptacle.left {
  left: 5px;
  top: 50%;
  transform: translateY(-50%);
  width: 10px;
  height: 30px;
  border-radius: 5px;
}

.vault-door {
  position: absolute;
  width: 100%;
  height: 100%;
  background: radial-gradient(circle, #4b5563 0%, #1f2937 100%);
  border-radius: 50%;
  transform-origin: left;
  transform-style: preserve-3d;
  box-shadow: 5px 0 15px rgba(0, 0, 0, 0.3);
  transition: transform 1.5s cubic-bezier(0.65, 0, 0.35, 1);
}

.vault-door::before {
  content: '';
  position: absolute;
  inset: 0;
  border-radius: 50%;
  background: radial-gradient(circle, #4b5563 0%, #1f2937 100%);
  backface-visibility: hidden;
}

.vault-door::after {
  content: '';
  position: absolute;
  inset: 0;
  border-radius: 50%;
  background: #111827;
  transform: rotateY(180deg);
  backface-visibility: hidden;
}

.vault-door.is-unlocked {
  transform: rotateY(-120deg);
  box-shadow: 25px 0 50px rgba(0, 0, 0, 0.2);
}

.hinge {
  position: absolute;
  width: 18px;
  height: 40px;
  background: #374151;
  border-radius: 4px 0 0 4px;
  border: 1px solid #4b5563;
  box-shadow: -2px 0 5px rgba(0, 0, 0, 0.1);
}

.hinge.top {
  top: 50px;
}

.hinge.bottom {
  bottom: 50px;
}

.vault-dial-container {
  position: absolute;
  top: 50%;
  left: 50%;
  transform: translate(-50%, -50%);
  width: 150px;
  height: 150px;
  background: radial-gradient(circle, #1f2937, #111827);
  border-radius: 50%;
  display: flex;
  justify-content: center;
  align-items: center;
  box-shadow: inset 0 3px 8px rgba(0, 0, 0, 0.1);
}

.vault-dial {
  width: 120px;
  height: 120px;
  background: linear-gradient(145deg, #4b5563, #1f2937);
  border-radius: 50%;
  border: 1px solid #6b7280;
  display: flex;
  justify-content: center;
  align-items: center;
  box-shadow: 0 5px 10px rgba(0, 0, 0, 0.1);
  position: relative;
}

.vault-handle {
  width: 100%;
  height: 100%;
  position: absolute;
  cursor: pointer;
  transition: transform 0.5s ease-in-out;
}

.vault-handle.active {
  animation: pulse-handle 1.5s infinite;
}

.handle-spoke {
  position: absolute;
  top: 50%;
  left: 50%;
  width: 60px;
  height: 10px;
  background: linear-gradient(to right, #fcd34d, #fbbf24);
  border-radius: 5px;
  border: 1px solid #f59e0b;
  transform-origin: 5px 5px;
  box-shadow: 0 1px 3px rgba(0, 0, 0, 0.2);
}

.handle-spoke:nth-child(1) {
  transform: translate(-5px, -5px) rotate(0deg);
}

.handle-spoke:nth-child(2) {
  transform: translate(-5px, -5px) rotate(120deg);
}

.handle-spoke:nth-child(3) {
  transform: translate(-5px, -5px) rotate(240deg);
}

.handle-hub {
  position: absolute;
  top: 50%;
  left: 50%;
  width: 25px;
  height: 25px;
  background: radial-gradient(circle, #fbbf24, #f59e0b);
  border-radius: 50%;
  border: 1px solid #d97706;
  transform: translate(-50%, -50%);
  box-shadow: 0 2px 5px rgba(0, 0, 0, 0.2);
}

/* Main content */
.main-content {
  text-align: center;
  padding: 30px;
  opacity: 0;
  transform: scale(0.95);
  transition: opacity 0.8s ease-out 0.5s, transform 0.8s ease-out 0.5s;
  max-width: 800px;
  margin: 0 auto;
}

.main-content.visible {
  opacity: 1;
  transform: scale(1);
}

.content-container {
  display: flex;
  flex-direction: column;
  gap: 30px;
}

.welcome-animation {
  display: flex;
  flex-direction: column;
  align-items: center;
  gap: 10px;
  margin-bottom: 20px;
}

.success-icon {
  font-size: 48px;
  color: #10b981;
  margin-bottom: 10px;
}

.welcome-animation h1 {
  font-size: 28px;
  font-weight: 600;
  color: #1e293b;
}

.welcome-animation p {
  color: #64748b;
  font-size: 16px;
}

.content-card {
  background: white;
  border-radius: 12px;
  padding: 30px;
  box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1);
  text-align: center;
  border: 1px solid #e2e8f0;
}

.content-card h2 {
  font-size: 24px;
  font-weight: 600;
  color: #1e293b;
  margin-bottom: 15px;
}

.content-card p {
  color: #64748b;
  font-size: 16px;
  margin-bottom: 30px;
}

.features-grid {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(180px, 1fr));
  gap: 20px;
  margin-top: 20px;
}

.feature {
  background: #f8fafc;
  border-radius: 8px;
  padding: 20px;
  transition: all 0.3s ease;
  border: 1px solid #e2e8f0;
}

.feature:hover {
  transform: translateY(-3px);
  box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1);
  border-color: #cbd5e1;
}

.feature i {
  font-size: 24px;
  color: #3b82f6;
  margin-bottom: 15px;
}

.feature h3 {
  font-size: 18px;
  font-weight: 600;
  color: #1e293b;
  margin-bottom: 8px;
}

.feature p {
  color: #64748b;
  font-size: 14px;
  margin-bottom: 0;
}

/* Animations */
@keyframes pulse-handle {
  0% {
    filter: brightness(1);
  }

  50% {
    filter: brightness(1.2) drop-shadow(0 0 8px #fcd34d);
  }

  100% {
    filter: brightness(1);
  }
}

@keyframes shake {
  10%,
  90% {
    transform: translate3d(-1px, 0, 0);
  }

  20%,
  80% {
    transform: translate3d(2px, 0, 0);
  }

  30%,
  50%,
  70% {
    transform: translate3d(-4px, 0, 0);
  }

  40%,
  60% {
    transform: translate3d(4px, 0, 0);
  }
}

Step 3 (JavaScript Code):

Finally, we need to create a function in JavaScript. Let's break down the JavaScript code:

1. Wait until DOM is Ready

document.addEventListener('DOMContentLoaded', () => {
  • Ensures the code runs only after HTML is fully loaded.
  • All DOM elements are available to query safely.

2. Grab Important DOM Elements

const preloader = document.querySelector('.preloader');
const vaultDoor = document.querySelector('.vault-door');
const scanner = document.querySelector('.fingerprint-scanner');
const handle = document.querySelector('.vault-handle');
const mainContent = document.querySelector('.main-content');
...
  • Selects UI parts:
    • Preloader screen
    • Vault door & handle
    • Fingerprint scanner
    • Status text
    • Success mark (checkmark)
    • Main content (hidden until unlock)

3. State Variables

let scanComplete = false;
let isUnlocked = false;
let scanTimeline;
  • scanComplete → becomes true once scanning succeeds.
  • isUnlocked → becomes true once the vault is open.
  • scanTimeline → GSAP animation reference (so it can be stopped).

4. Audio Synths (Dummy Sound Effects)

Using Tone.js to create futuristic sounds:

const successSynth = new Tone.PolySynth(...);   // Success chime
const boltSynth = new Tone.MetalSynth(...);     // Lock bolt sound
const doorSynth = new Tone.NoiseSynth(...);     // Door opening sound
const scannerSynth = new Tone.AMSynth(...);     // Scanning sound
const failSynth = new Tone.Synth(...);          // Failure beep
  • Each plays different sounds during interactions.

5. Event Listeners

scanner.addEventListener('mousedown', startScan);
scanner.addEventListener('mouseup', cancelScan);
handle.addEventListener('click', handleHandleTurn);
  • Fingerprint scanner → starts scanning on press, cancels on release.
  • Vault handle → clickable after scan success to open vault.

6. Start Scan

function startScan(e) {
  if (scanComplete || isUnlocked) return;

  scannerSynth.triggerAttack('C2'); // Start scan sound
  statusText.textContent = 'Scanning...';
  scanner.classList.add('scanning');

  // GSAP timeline: animate scan line + fingerprint highlight
  scanTimeline = gsap.timeline({ onComplete: () => { scanSuccess(); } });

  scanTimeline
    .to(scanLine, { opacity: 1, duration: 0.2 })
    .set(fingerprintLines, { filter: 'brightness(1.5)' })
    .to(fingerprintLines, { clipPath: 'polygon(...)', duration: 2.0 })
    .to(scanLine, { y: '80px', duration: 2.0 }, '<');
}
  • Plays a scanning sound.
  • Animates fingerprint glowing + scan line moving down.
  • If animation completes → calls scanSuccess().

7. Cancel Scan

function cancelScan() {
  if (scanTimeline && scanTimeline.isActive()) {
    scannerSynth.triggerRelease();  // Stop scan sound
    failSynth.triggerAttackRelease('A2', '0.1'); // Error beep

    scanTimeline.kill(); // Stop animation
    gsap.to([fingerprintLines, scanLine], { clearProps: 'all', duration: 0.3 });

    scanner.classList.add('fail');
    statusText.textContent = 'Scan Failed';

    // Reset to idle after 1s
    setTimeout(() => {
      scanner.classList.remove('scanning');
      scanner.classList.remove('fail');
      statusText.textContent = 'Awaiting Scan';
    }, 1000);
  }
}
  • If the user releases the finger too early, the scan fails.
  • Plays failure beep, resets UI, shows "Scan Failed".

8. Successful Scan

function scanSuccess() {
  scanComplete = true;
  scanner.style.cursor = 'default';
  scannerSynth.triggerRelease(); // Stop scanning sound

  const tl = gsap.timeline({ onComplete: activateHandle });

  tl.to(fingerprintLines, { filter: 'brightness(1)' })
    .to(scanLine, { opacity: 0 })
    .set(statusText, { textContent: 'Verified' })
    .fromTo(successMark, { scale: 0, opacity: 0 }, { scale: 1, opacity: 1 })
    .to(securityPanel, { opacity: 0, scale: 0.9, onComplete: () => { securityPanel.style.display = 'none'; } })
    .fromTo(vaultContainer, { display: 'none', opacity: 0 }, { display: 'block', opacity: 1 });
}
  • Marks scan as complete.
  • Shows "Verified" + green checkmark.
  • Hides scanner panel → reveals vault door.
  • Calls activateHandle() afterward.

9. Activate Handle

function activateHandle() {
  successSynth.triggerAttackRelease(['C4', 'E4', 'G4'], '0.5'); // Success sound
  instructions.textContent = 'Click Handle to Open';
  handle.classList.add('active'); // Glow effect
}
  • Plays success chime.
  • Update instructions.
  • Makes the handle glow (ready to be clicked).

10. Handle Turn

function handleHandleTurn() {
  if (!scanComplete || isUnlocked) return;
  isUnlocked = true;

  const tl = gsap.timeline();
  tl.to(handle, { rotation: 120, duration: 0.5 }) // Rotate handle
    .call(() => boltSynth.triggerAttackRelease('C2', '0.2')) // Lock bolt sound
    .call(openDoor); // Then open vault
}
  • Rotates the handle animation.
  • Plays metallic bolt unlocking sound.
  • Calls openDoor().

11. Open Vault Door

function openDoor() {
  doorSynth.triggerAttack(); // Door opening sound

  vaultDoor.classList.add('is-unlocked'); // Rotate open

  setTimeout(() => {
    mainContent.style.display = 'block';
    const revealTl = gsap.timeline({
      onComplete: () => { setTimeout(() => preloader.remove(), 500); },
    });

    revealTl
      .to(preloaderContent, { scale: 15, duration: 1.0 }) // Explosion effect
      .to(mainContent, { opacity: 1, duration: 1.0 })    // Show content
      .to(preloader, { opacity: 0, duration: 0.5 }, '<');
  }, 600);
}
  • Vault door rotates open.
  • Plays whoosh door sound.
  • Expands preloader content (cool zoom-out effect).
  • Reveals hidden main page content.
  • Removes preloader entirely.
document.addEventListener('DOMContentLoaded', () => {
  // --- DOM Elements ---
  const preloader = document.querySelector('.preloader');
  const preloaderContent = document.querySelector('.preloader-content');
  const vaultContainer = document.querySelector('.vault-perspective-container');
  const vaultDoor = document.querySelector('.vault-door');
  const mainContent = document.querySelector('.main-content');
  const handle = document.querySelector('.vault-handle');
  const scanner = document.querySelector('.fingerprint-scanner');
  const securityPanel = document.querySelector('.security-panel');
  const statusText = document.querySelector('.status-text');
  const instructions = document.querySelector('.vault-instructions p');
  const fingerprintLines = document.querySelector('.fingerprint-lines');
  const scanLine = document.querySelector('.scan-line');
  const successMark = document.querySelector('.success-mark');

  // --- State Variables ---
  let scanComplete = false;
  let isUnlocked = false;
  let scanTimeline; // To hold the GSAP timeline

  // --- Audio Synthesis ---
  const successSynth = new Tone.PolySynth(Tone.Synth, {
    volume: -8,
    oscillator: { type: 'sine' },
    envelope: { attack: 0.005, decay: 0.1, sustain: 0.3, release: 1 },
  }).toDestination();
  const boltSynth = new Tone.MetalSynth({
    frequency: 80,
    envelope: { attack: 0.001, decay: 0.1, release: 0.05 },
    harmonicity: 3.1,
    modulationIndex: 40,
    resonance: 3000,
    octaves: 1.5,
  }).toDestination();
  const doorSynth = new Tone.NoiseSynth({
    noise: { type: 'brown' },
    envelope: { attack: 0.1, decay: 1.4, sustain: 0, release: 0.1 },
  }).toDestination();
  const scannerSynth = new Tone.AMSynth({
    harmonicity: 1.5,
    envelope: { attack: 0.01, decay: 0.2, sustain: 0.1, release: 0.1 },
    modulationEnvelope: { attack: 0.1, decay: 0.1, sustain: 0.2, release: 0.1 },
  }).toDestination();
  const failSynth = new Tone.Synth({
    oscillator: { type: 'square' },
    envelope: { attack: 0.01, decay: 0.2, sustain: 0, release: 0.1 },
  }).toDestination();

  // --- Event Listeners ---
  scanner.addEventListener('mousedown', startScan);
  scanner.addEventListener('touchstart', startScan);
  scanner.addEventListener('mouseup', cancelScan);
  scanner.addEventListener('mouseleave', cancelScan);
  scanner.addEventListener('touchend', cancelScan);
  handle.addEventListener('click', handleHandleTurn);

  function startScan(e) {
    e.preventDefault();
    if (scanComplete || isUnlocked) return;

    scannerSynth.triggerAttack('C2');
    statusText.textContent = 'Scanning...';
    scanner.classList.add('scanning');

    // Create and play the GSAP timeline
    scanTimeline = gsap.timeline({
      onComplete: () => {
        scanSuccess();
      },
    });

    scanTimeline
      .to(scanLine, { opacity: 1, duration: 0.2 })
      .set(fingerprintLines, { filter: 'brightness(1.5)' })
      .to(
        fingerprintLines,
        {
          clipPath: 'polygon(0% 0%, 100% 0%, 100% 100%, 0% 100%)',
          duration: 2.0, // Slower scan for hold effect
          ease: 'power1.inOut',
        },
        '-=0.2'
      )
      .to(scanLine, { y: '80px', duration: 2.0, ease: 'power1.inOut' }, '<');
  }

  function cancelScan() {
    if (scanComplete || isUnlocked) return;
    if (scanTimeline && scanTimeline.isActive()) {
      scannerSynth.triggerRelease();
      failSynth.triggerAttackRelease('A2', '0.1', '+0.05');

      scanTimeline.kill();
      gsap.to([fingerprintLines, scanLine], {
        clearProps: 'all',
        duration: 0.3,
      });

      scanner.classList.add('fail');
      statusText.textContent = 'Scan Failed';

      setTimeout(() => {
        scanner.classList.remove('scanning');
        scanner.classList.remove('fail');
        statusText.textContent = 'Awaiting Scan';
      }, 1000);
    }
  }

  function scanSuccess() {
    if (scanComplete) return;
    scanComplete = true;
    scanner.style.cursor = 'default';
    scannerSynth.triggerRelease();

    const tl = gsap.timeline({ onComplete: activateHandle });

    tl.to(fingerprintLines, { filter: 'brightness(1)', duration: 0.3 })
      .to(scanLine, { opacity: 0, duration: 0.3 })
      .set(statusText, { textContent: 'Verified' })
      .fromTo(
        successMark,
        { scale: 0, opacity: 0 },
        { scale: 1, opacity: 1, duration: 0.5, ease: 'back.out(1.7)' }
      )
      .to(securityPanel, {
        opacity: 0,
        scale: 0.9,
        duration: 0.5,
        ease: 'power2.in',
        onComplete: () => {
          securityPanel.style.display = 'none';
        },
      })
      .fromTo(
        vaultContainer,
        { display: 'none', opacity: 0, scale: 0.9 },
        {
          display: 'block',
          opacity: 1,
          scale: 1,
          duration: 0.6,
          ease: 'power2.out',
        }
      );
  }

  function activateHandle() {
    successSynth.triggerAttackRelease(['C4', 'E4', 'G4'], '0.5', Tone.now());
    instructions.textContent = 'Click Handle to Open';
    handle.classList.add('active');
  }

  function handleHandleTurn() {
    if (!scanComplete || isUnlocked) return;
    isUnlocked = true;

    handle.classList.remove('active');

    const tl = gsap.timeline();
    tl.to(
      handle,
      {
        rotation: 120,
        duration: 0.5,
        ease: 'power2.inOut',
      },
      '-=0.2'
    )
      .call(() => boltSynth.triggerAttackRelease('C2', '0.2', Tone.now()))
      .call(openDoor);

    securityPanel.style.display = 'none';
  }

  function openDoor() {
    doorSynth.triggerAttack(Tone.now());

    vaultDoor.classList.add('is-unlocked');
    setTimeout(() => {
      mainContent.style.display = 'block';

      const revealTl = gsap.timeline({
        onComplete: () => {
          setTimeout(() => preloader.remove(), 500);
        },
      });

      revealTl
        .to(preloaderContent, {
          scale: 15,
          duration: 1.0,
          ease: 'power3.in',
        })
        .to(mainContent, {
          opacity: 1,
          duration: 1.0,
          ease: 'power1.out',
        })
        .to(
          preloader,
          {
            opacity: 0,
            duration: 0.5,
          },
          '<'
        );
    }, 600);
  }
});

Final Output:

Read Alsocreate-neon-brick-breaker-game-using-html-css-js.webpCreate Neon Brick Breaker Game using HTML CSS JS

Conclusion:

You’ve successfully created a Futuristic Vault Login with Dummy Fingerprint Scan using HTML, CSS, and JavaScript.

Remember: This is a dummy scanner only for UI and design. It does not provide real biometric security.

This project is great for:

  • Practice in front-end development
  • Portfolio design ideas
  • Sci-fi or futuristic themed projects

With a little creativity, you can extend it with animations, neon effects, or background music to make it look like a real sci-fi vault access system.

That’s a wrap!

I hope you enjoyed this post. Now, with these examples, you can create your own amazing page.

Did you like it? Let me know in the comments below 🔥 and you can support me by buying me a coffee

And don’t forget to sign up to our email newsletter so you can get useful content like this sent right to your inbox!

Thanks!
Faraz 😊

Tags: futuristic vault login using html css js, dummy fingerprint scanner login page tutorial, how to create secure access portal in javascript, biometric style login form html css javascript, fingerprint authentication ui for websites, login concept, fingerprint login, vault access portal, login form, html css javascript login, biometric login system, futuristic login page
End of the article

Subscribe to my Newsletter

Get the latest posts delivered right to your inbox

Latest Components

Please allow ads on our site🥺
